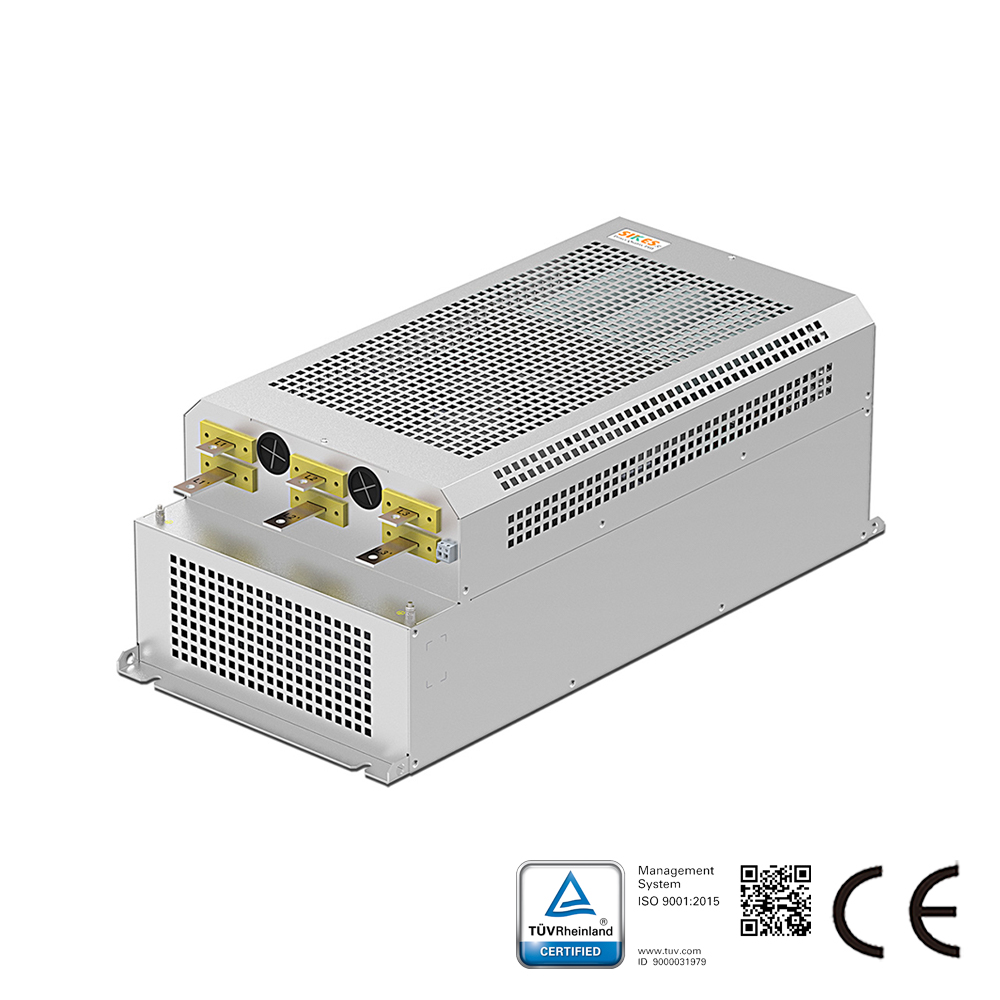

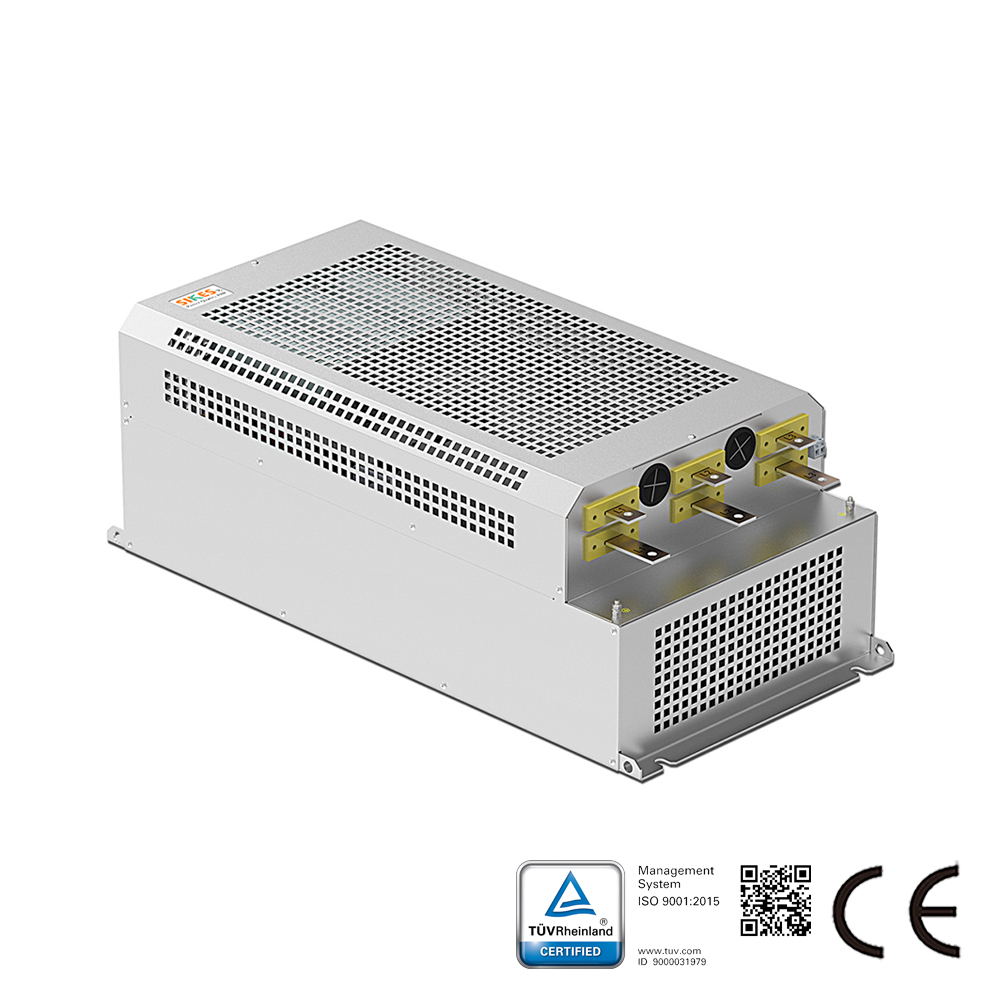

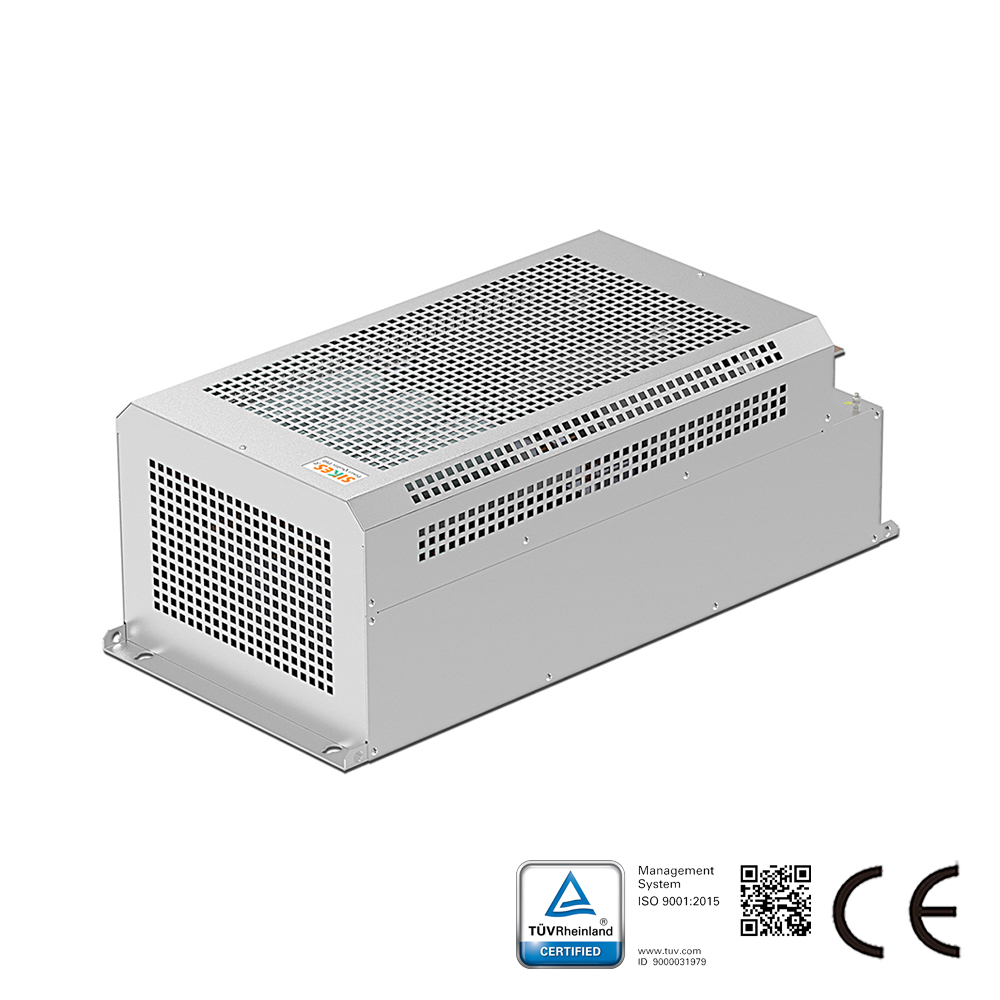

SIKES Passive Harmonic Filter PIHF Series are Designed for matched with ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 full power range.

Optimize harmonic performance

Harmonic Filter PIHF is a cost-effective Harmonic solution. Compared to traditional harmonic trap filters PIHF offers a smaller foot print and higher harmonic reduction.

When connected in front of a  ABB Low Voltage Drive, the harmonic current distortion generated back to the mains is reduced to 10% Total Harmonic Current Distortion at full load. (System requirements: THVD < 2%, line voltage unbalance < 1%)

With a >98% efficiency the Passive Harmonic Filters PIHF offer cost effective and very robust harmonic solutions specifically for ABB Low Voltage Drive (ACS510, ACx550, ACx580, ACS880 full power range.

As stand-alone options the Advanced Harmonic Filters feature a compact housing that is easily integrated into existing panel space. This makes them well-suited for retrofit applications with limited adjustments of the frequency converter.
